AMD Ryzen 5 5500 PC Upgrade Kit - ASUS TUF B550-PLUS WIFI II, 8GB DDR4

AMD Ryzen 5 5500 PC Upgrade Kit

Build a fast, dependable AMD system with the ASUS TUF GAMING B550-PLUS WIFI II motherboard, AMD Ryzen 5 5500 processor, 8GB KingSpec DDR4-3200 desktop memory and the included AMD Wraith Stealth cooler. This upgrade kit is suited to gaming, everyday computing, study, content creation and responsive multitasking.

Kit Includes

• ASUS TUF GAMING B550-PLUS WIFI II ATX motherboard with Wi-Fi 6 and Bluetooth 5.2
• AMD Ryzen 5 5500 processor, model 100-100000457BOX
• AMD Wraith Stealth thermal solution
• KingSpec 8GB DDR4-3200 desktop memory

AMD Ryzen 5 5500 Processor

• Cores / threads: 6 cores / 12 threads
• Clock speeds: 3.6GHz base, up to 4.2GHz maximum boost
• Cache: 384KB L1, 3MB L2 and 16MB L3, 19MB total game cache
• Default TDP: 65W
• Architecture: AMD Zen 3, TSMC 7nm FinFET
• Socket: AM4, 1P socket count
• Unlocked: Yes
• Maximum operating temperature: 90°C
• Memory support: DDR4, dual-channel, up to 128GB and up to DDR4-3200 depending on the memory configuration
• Memory configurations: 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933 and 4x2R DDR4-2667
• Expansion interface: PCIe 3.0
• Operating system support: Windows 10 64-bit, Windows 11 64-bit, RHEL x86 64-bit and Ubuntu x86 64-bit
• Supported technologies: AMD StoreMI Technology, AMD Zen 3 Core Architecture and AMD Ryzen VR-Ready Premium

ASUS TUF GAMING B550-PLUS WIFI II Motherboard

• Form factor: ATX, 12.0 x 9.6 inches
• Chipset and socket: AMD B550, AM4
• Compatible CPUs: AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000 Series desktop processors
• Memory: 4 x 288-pin DDR4 DIMM slots, dual-channel, up to 128GB, with support up to DDR4-4866 (OC)
• Memory standards: DDR4-2133 to DDR4-4866 (OC), including 3200, 3600, 4000 and higher supported speeds depending on the CPU and memory kit
• Expansion: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 running in x4 mode and 3 x PCIe 3.0 x1 slots
• Storage: 6 x SATA 6Gb/s ports and 2 x M.2 Key M slots supporting 2242, 2260, 2280 and 22110 devices
• M.2 support: PCIe 4.0 x4 and SATA modes on M.2_1 with compatible Ryzen 5000/3000 CPUs; PCIe 3.0 x4 and SATA modes on M.2_1 with Ryzen 5000 G-Series/4000 G-Series CPUs and on M.2_2 via the B550 chipset
• M.2 note: M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 is disabled
• RAID: SATA RAID 0, 1 and 10
• Networking: Realtek 2.5Gb Ethernet, Wi-Fi 6 and Bluetooth 5.2
• Wireless standards: 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac and 802.11ax
• Audio: 7.1-channel audio, 5 audio jacks and optical S/PDIF output
• Video outputs: 1 x DisplayPort and 1 x HDMI, supported when using a CPU with integrated graphics

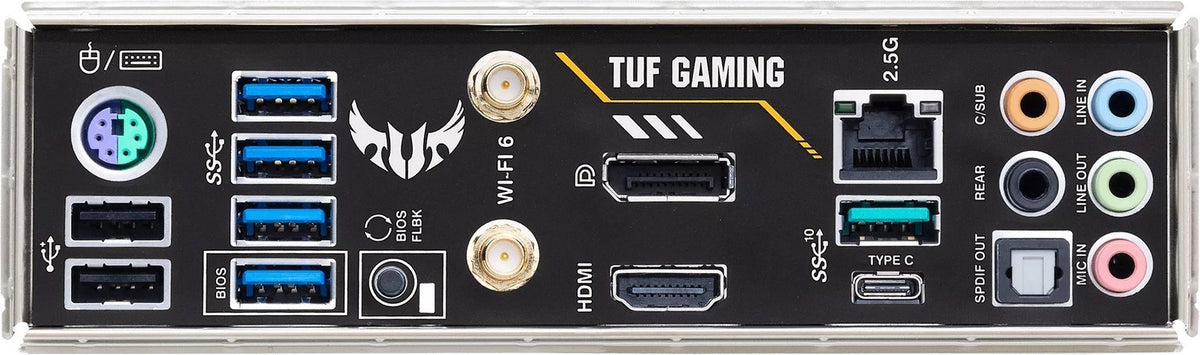

• Rear USB: 2 x USB 3.2 Gen 2, including 1 x Type-A and 1 x Type-C; 4 x USB 3.2 Gen 1 Type-A; 2 x USB 2.0 Type-A
• Networking ports: 1 x ASUS Wi-Fi module and 1 x Realtek 2.5Gb Ethernet port
• Protection and cooling: ASUS TUF Protection, Digi+ VRM with Dr. MOS, ESD Guards, TUF LANGuard, overvoltage protection, SafeSlot, stainless-steel rear I/O and an aluminium M.2 heatsink
• Fan and lighting headers: CPU fan, CPU OPT fan, AIO pump, 3 x chassis fan, 2 x AURA Addressable Gen 2 and 2 x AURA RGB headers
• DIY features: BIOS FlashBack, Q-DIMM, Q-LED, Q-Slot, ProCool and UEFI BIOS
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3 and ASUS EZ Flash 3
• Operating system support: Windows 10 64-bit and Windows 11 64-bit

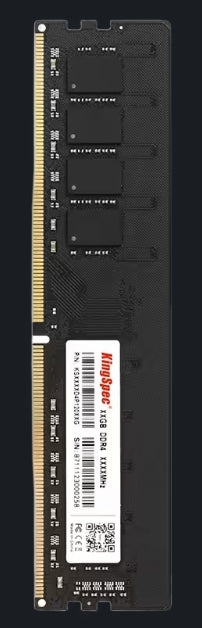

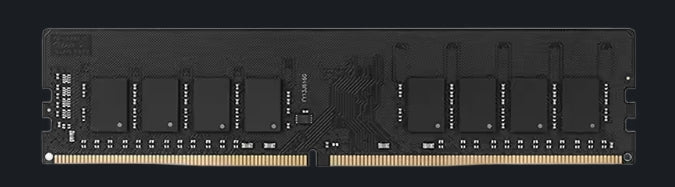

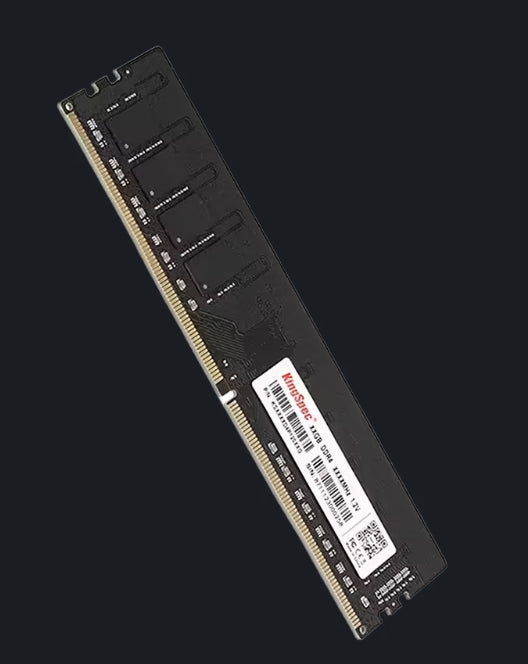

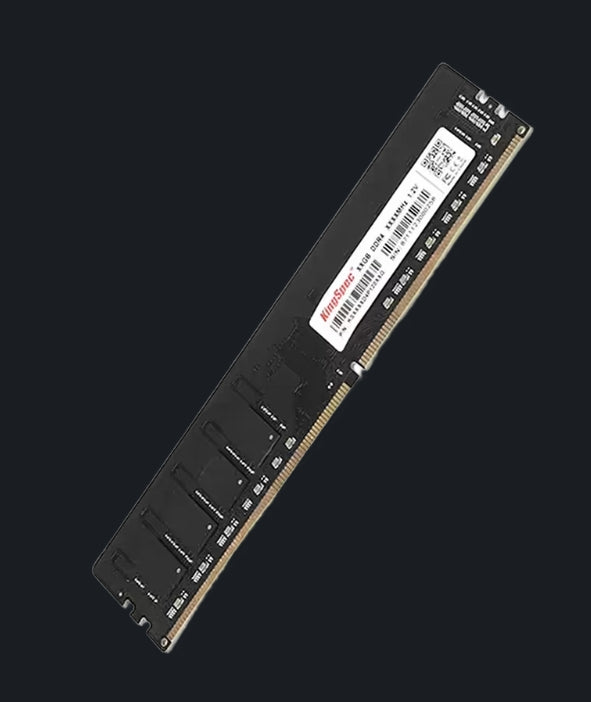

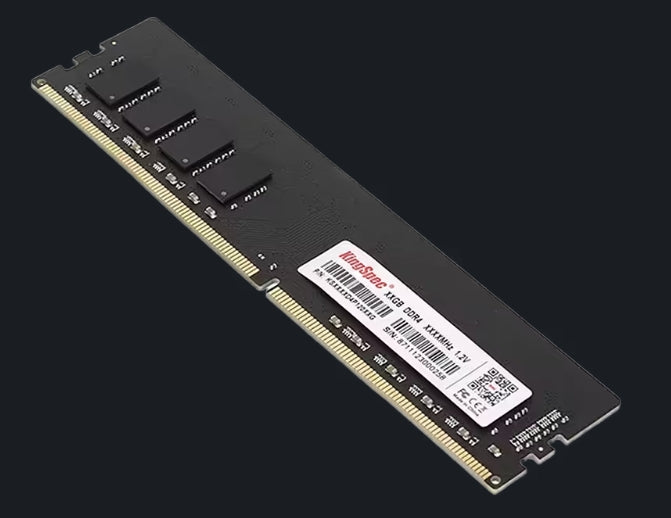

KingSpec 8GB DDR4-3200 Memory

• Capacity: 8GB
• Speed: 3200MT/s
• Type: DDR4 desktop DIMM, 288-pin
• Voltage: 1.2V / 1.35V
• Module dimensions: 133.3 x 31.2 x 4.0mm
• Application: Desktop computers
• Warranty: 3 years
• Operating temperature: 0°C to +85°C
• Storage temperature: -20°C to +100°C

Package Contents

• ASUS TUF GAMING B550-PLUS WIFI II motherboard
• AMD Ryzen 5 5500 processor
• AMD Wraith Stealth cooler
• KingSpec 8GB DDR4-3200 memory
• 2 x SATA 6Gb/s cables
• I/O shield, M.2 rubber packages and M.2 SSD screw package
• TUF Gaming sticker and ASUS dual-band Wi-Fi antennas
• Support DVD, TUF Certification card and user manual

Important: Ryzen 5 5500 requires a dedicated graphics card because this processor does not provide integrated graphics. CPU, memory and PCIe support can vary by configuration. Refer to ASUS for the latest CPU support list and memory QVL before installation.
